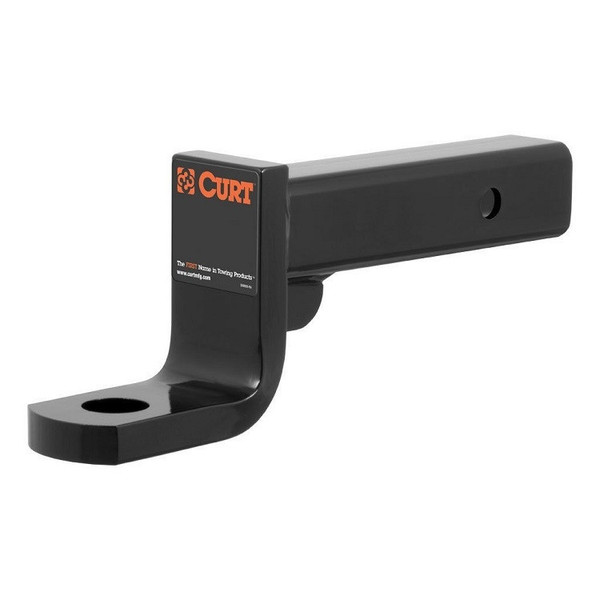

When you demand more from your towing equipment, CURT class 4 ball mounts answer the call. Our heavy-duty ball mounts are constructed from quality steel and feature a 2" x 2" shank. They are built to complement CURT class 4 trailer hitches and are perfect for towing large boat trailers, RVs, livestock and horse trailers as well as a variety of other farm and industrial-type trailers. With a few different drop height options and the ability to flip for optional rise, CURT class 4 ball mounts are built to work as hard as you do, from sunup to sundown.
This class 4 ball mount has a gross trailer weight capacity of 10,000 lbs. and tongue weight rating of 1,000 lbs. It has a standard drop of 4" or can be flipped to provide 2-3/4" of rise. It also features a hollow shank, allowing an anti-rattle hitch pin or lock to be used for reduced noise and vibration. As with most of our ball mount line, CURT class 4 ball mounts are CNC-formed, robotically welded and mechanically descaled to create a flawless product. We finish our heavy-duty ball mounts in a gloss black powder coat to give them superior rust, chip and UV resistance. They also come with 1-1/4" ball hole to accept a trailer ball with a 1-1/4" shank.
Class 4 Ball Mount Features:
- Fits trailer hitches with a 2" x 2" receiver tube opening
- Equipped with a 1-1/4" hole to accept a trailer ball shank
- 4" drop or 2-3/4" rise for precise trailer leveling
- Hollow shank weighs less and can be used with an anti-rattle hitch pin
- Protected by a durable powder coat finish
Specifications:
- Shipping Weight- 8.350
- Rise- 2 3/4"
- Gross Trailer Weight (GTW)- 10,000 LB
- Ball Hole- 1 1/4"
- Finish- Gloss Black Powder Coat
- Drop- 4"
- Receiver Tube Size- 2"
- Color- Black
- HUB_USA- D01
- Tongue Weight (TW)- 1,000 LB
- Material- Carbon Steel
Note:
- Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc
- Trailer ball and hitch pin sold separately.
