Ford Bronco / Bronco Sport Quickie Mount Bracket For W SD 90 Compressor by Pacbrake

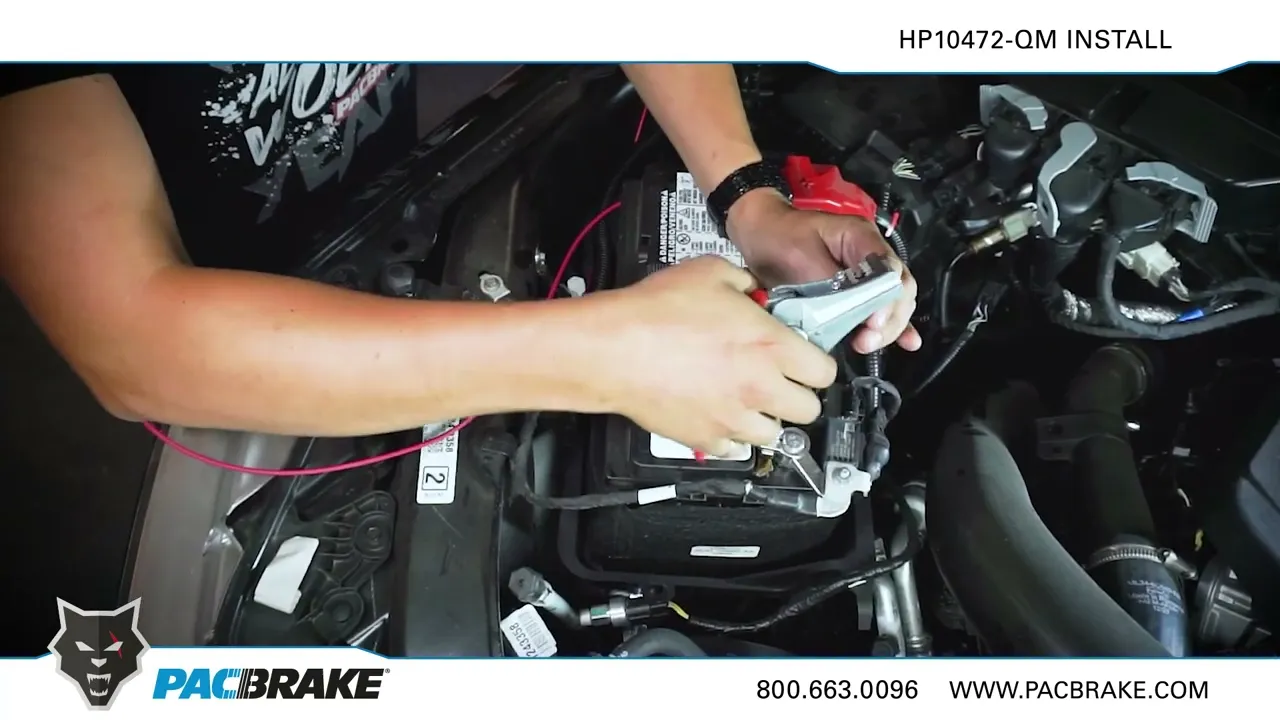

The kit comes with everything required for easily mounting an HP10472 kit:

• Mounting Bracket
• All mounting hardware

Wireless Controls Compressor Features

• Military grade solenoids Designed to withstand extreme environments
• Waterproof and debris resistant Demand a Pacbrake IP67 rated controller
• Don't experience the irreparable debris clogs of other leading products! Our compressor has accessible components that allow easy serviceability and replacement of parts
• Smarter App An easy to use app that reads real time pressure feedback within each air spring and provides more of the data you need. The app has 3 built-in memory presets so you can quickly achieve your desired air spring pressure.
• Faster Fills Up to 10% faster than the leading competition
• Quick and Easy Install Pre-installed push-to-connect air fittings and pre-assembled wiring connectors reduce installation time

Pacbrake Wireless Controls are a universal fit - They fit the frame of any vehicle, work with any air spring on the market. They can also be easily installed with common mechanic tools under 1 hour - no lines or wires to the cab and no drilling required!

Product Specifications:

• Max Working Pressure / Duty Cycle - 827.4 kPa [120 psi], 9% @ 689.5 kPa [100 psi]
• Max Continuous Run Time - 5 Minutes ON / 55 Minutes OFF
• Rated Flow - 29 L/min [1.02 CFM] @ 0 kPa [0 psi]
• Independent / Simultaneous Fill - Simultaneous
• Ingress Protection - IP55 Compressor, IP67 Electric Connectors
• Weight - 1.09 kg [2.41 lbs]
• Ambient Operating Temperature Range - -40ºC to +70ºC [-40ºF to +158ºF]
• Nominal Supply Voltage - 12 VDC
• Max Current Draw - 11 Amps

Application Notes

This kit is a mounting bracket to be used with an HP10472: Single Channel Wireless Control w/ SD 90 Series Compressor kit and Does Not include the compressor assembly or controller.
