SKU:
145520-XX-EBA
BRAND:
Superwinch
Unleash the off-road beast with Ford Bronco Superwinch S Series: powerful utility winches for unmatched performance.
Read More
Most powerful trailer winch ever. Redesigned from the ground up, the S Series continues Superwinch's dominance as the only trailer winch manufacturer. Smart features like a foot operable free spool clutch, socket on top for easy access, and an instant-stop motor for precision trailer winching. Available in steel or synthetic rope.
Superwinch S Series Utility Winches Features
- Rated line pull of 5,500 or 7,500 lbs
- 3.6 HP permanent magnet motor
- 3-Stage planetary gearing
- Sealed S3 solenoid
- Steel cable or synthetic rope is available
- Innovative kick-flip controls free spool with ease
- Steel cut gears for better engagement and longevity

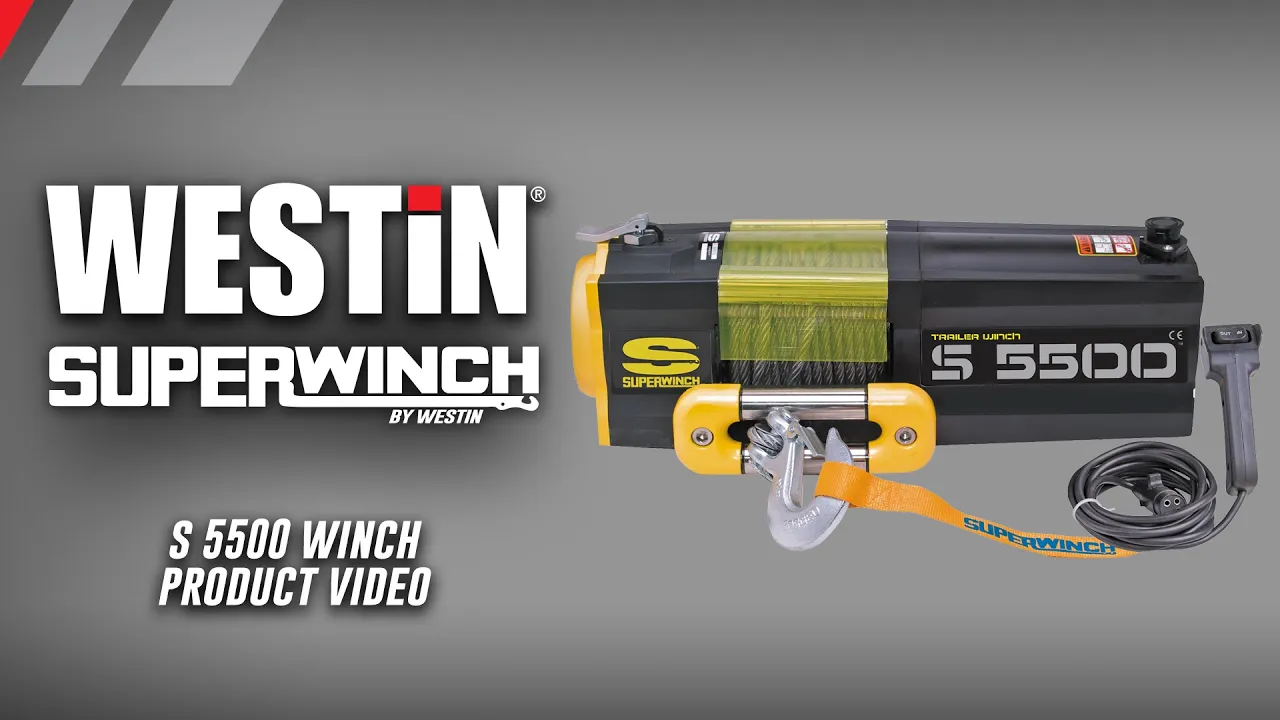

S5500 Winch
- Brake System Dynamic
- Clutch Free-Spooling, Pull and Turn
- Drum Diameter (IN) 1.25
- Drum Length (IN) 2.83
- Fairlead Type 4-Way Roller
- Gear Ratio 153:1
- Gear System 1-stage planetary
- HorsePower 1.2
- Rated Single Line Pull (LBS) 5500
- Motor Type 12V DC
- Remote 12ft Rubber Hand-held
- Rope Length 3/16 in x 40 ft
- Rope Material Steel Wire
- Solenoid Circuit Breaker Protected
S7500 Winch
- Brake System Mechanical
- Gear Ratio 249:1
- Gear System 3-stage planetary
- HorsePower 3.6
- Rated Single Line Pull (LBS) 7500
- Motor Type 12V DC
- Remote 30.5 ft handheld remote control
- Rope Length 5/16 x 54 ft
- Rope Material Steel Wire
- Solenoid 2-Way Fairlead
