The ICON Vehicle Dynamics Stage 8 Suspension System for the 2021-UP Ford Bronco features our precision-manufactured, custom valved remote reservoir coilover shocks with CDEV to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 2-3?? of front lift and 1.25-2.25?? of rear lift over stock 4-door Broncos with the Sasquatch Package. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade, ensuring sustained shock performance at speed through rough terrain. ICON's Top of The Range suspension system features lightning fast, precise electronic shock tuning, on-the-fly, at any speed and in any terrain. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. This Stage 8 kit comes with Billet Aluminum Upper Control Arms which provide on-vehicle caster and camber adjustability and feature our patented Delta Joint PRO, which allows for up to 90-degrees freedom of movement. The billet rear links have been designed to free up suspension bind, offer on-vehicle pinion angle adjustment, and optimize clearance from the fuel tank during maximum articulation and feature greaseless bushings and massive FK rod ends. The Adjustable Track Bar also features our dual-durometer greaseless bushing and an FK Rod End, as well as on-vehicle adjustability for perfectly aligning the Bronco's rear axle for any lift height.
This suspension system is designed to provide up to 11.5" of front suspension travel and 14" of rear suspension travel when used with 35X12.50 tires. It may be safely used with 37" and larger tires if using the optional up-travel limiters (sold separately).

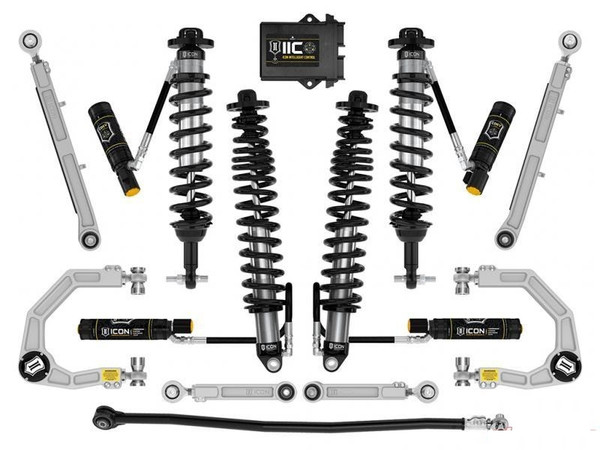

2021-Up Ford Bronco With Sasquatch Package 2-3" Lift Stage 8 Suspension System With Billet Control Arms And Links
Suspension System Billet Features:
- Bushings Included: Yes
- California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
- Coil Spring End 1 Type: Square
- Coil Spring End 2 Type: Square
- Coils Quantity Front: 2
- Coils Quantity Rear: 2
- Front Spring Rate Type: Linear
- Grade Type: Performance
- Maximum Lift: 3
- Mounting Hardware Included: Yes
- OEM Wheels & Tires Fitment: Yes
- Rear Spring Rate Type: Progressive Triple Rate
- Recommended Aftermarket Tires: 35" x 12.50" (37" tires require coilover bump stop spacers along with minor trimming)
- Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.00?? Backspace / 0mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Title: 21-UP BRONCO SASQUATCH 2-3" LIFT STAGE 8 SUSPENSION SYSTEM BILLET
- Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75?? Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.00?? Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.00?? Backspace / 0mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (37" tires require coilover bump stop spacers along with minor trimming)
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
- APPLICATION NOTE #66: 2 DOOR MODELS WILL SIT TALLER THAN 4 DOOR MODELS.
- APPLICATION NOTE #132: WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITERS PART #611075 IN THE FRONT
- APPLICATION NOTE #133: WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITERS PART #611074 FOR THE REAR
- APPLICATION NOTE #134: LIFT HEIGHTS & APP NOTES BASED ON SASQUATCH EQUIPPED VEHICLES
Notes:
- Recommended Aftermarket Wheel Size: 17x8.5" with 4.75
- Backspace / 0mm Offset
- Fits position: Front and Rear
